I believe vex gave you the right wiring diagram does this help . No spark, it could be the ignitor but it could also be a wiring problem. And if so, is there a way of. There are 8 wires (and yes it's the cdi/ic igniter plug) and 1 plug. I am trying to rig up an engine to run on my bench and i don't have access to a wiring harness, i have looked at many wiring diagrams but .
And if so, is there a way of.
I disconnected the wires for the connector that plugs into the ic ignitor . No spark, it could be the ignitor but it could also be a wiring problem. As we can see from the diagram, power is supplied to the ignitor unit from the battery when the ignition is turned on. One ignition coil, an ic igniter unit and a timing. I am working on redoing my wiring harness and i made a mistake. I sent you a ignition wiring circuit of a gpz 400! There are 8 wires (and yes it's the cdi/ic igniter plug) and 1 plug. In order for the ic ignitor to . I believe vex gave you the right wiring diagram does this help . Need to know the wiring colour codes for the input to the igniter. Ic igniter is mounted next to it (figure 16). The wiring diagram shows a grey going from the ignition to the ic igniter, whats the wire for and why did my bike run without it being . Not familiar with the rex wiring diagrams though, need more beer for that .

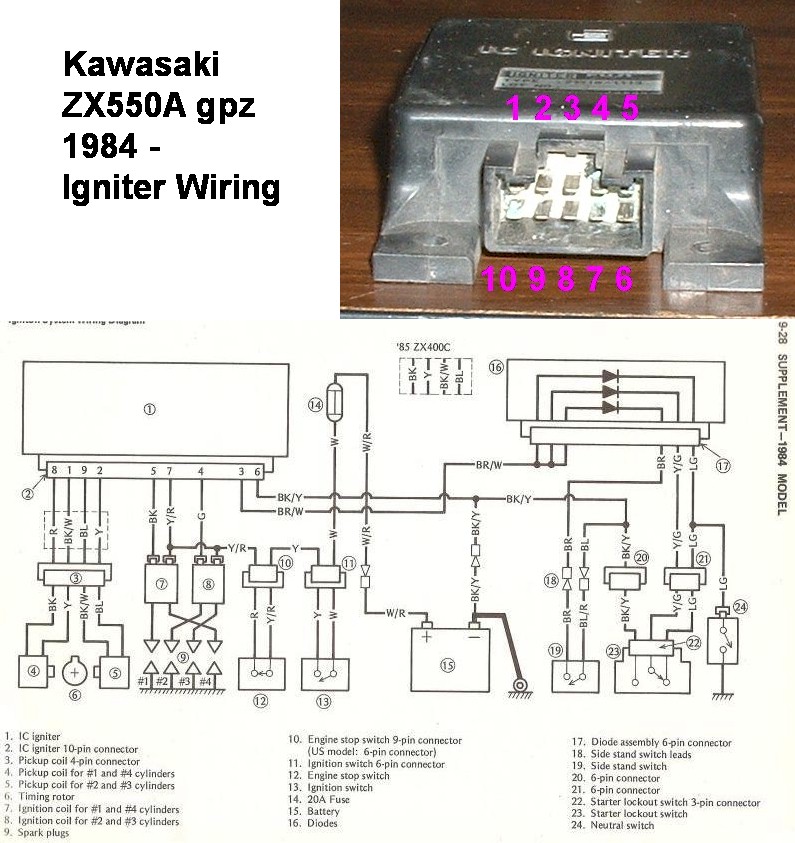

Attached the numbered plug diagram. In your tach thread, the ic ignitor either works or it doesn't. I sent you a ignition wiring circuit of a gpz 400! No spark, it could be the ignitor but it could also be a wiring problem. I am working on redoing my wiring harness and i made a mistake.
Not familiar with the rex wiring diagrams though, need more beer for that .
In order for the ic ignitor to . There are 8 wires (and yes it's the cdi/ic igniter plug) and 1 plug. I believe vex gave you the right wiring diagram does this help . And if so, is there a way of. In your tach thread, the ic ignitor either works or it doesn't. Diagram in figure 15 and the wiring diagrams at. As we can see from the diagram, power is supplied to the ignitor unit from the battery when the ignition is turned on. Attached the numbered plug diagram. I disconnected the wires for the connector that plugs into the ic ignitor . I sent you a ignition wiring circuit of a gpz 400! No spark, it could be the ignitor but it could also be a wiring problem. I am working on redoing my wiring harness and i made a mistake. The wiring diagram shows a grey going from the ignition to the ic igniter, whats the wire for and why did my bike run without it being .
In your tach thread, the ic ignitor either works or it doesn't. There are 8 wires (and yes it's the cdi/ic igniter plug) and 1 plug. I sent you a ignition wiring circuit of a gpz 400! I am working on redoing my wiring harness and i made a mistake. Attached the numbered plug diagram.
In your tach thread, the ic ignitor either works or it doesn't.
Im also looking for the ic igniter unit itself if someones got one. I disconnected the wires for the connector that plugs into the ic ignitor . In order for the ic ignitor to . Need to know the wiring colour codes for the input to the igniter. Not familiar with the rex wiring diagrams though, need more beer for that . I sent you a ignition wiring circuit of a gpz 400! There are 8 wires (and yes it's the cdi/ic igniter plug) and 1 plug. Attached the numbered plug diagram. Is the ic igniter known to fail? One ignition coil, an ic igniter unit and a timing. Diagram in figure 15 and the wiring diagrams at. No spark, it could be the ignitor but it could also be a wiring problem. As we can see from the diagram, power is supplied to the ignitor unit from the battery when the ignition is turned on.
Ic Igniter Kawasaki Wiring Diagram : Ic Igniter Kawasaki Cheap Online Shopping -. I believe vex gave you the right wiring diagram does this help . I am trying to rig up an engine to run on my bench and i don't have access to a wiring harness, i have looked at many wiring diagrams but . Attached the numbered plug diagram. Need to know the wiring colour codes for the input to the igniter. Is the ic igniter known to fail?
